Terminator X Performance Fuel Injectors - Set of Eight - PICO/EV6 - 120 lb/hr - High Impedance - Flow Matched
Terminator X Performance Fuel Injectors - Set of Eight - PICO/EV6 - 120 lb/hr - High Impedance - Flow Matched
Terminator X Performance Fuel Injectors - Set of Eight
PICO/EV6 - 120 lb/hr - High Impedance
Overview

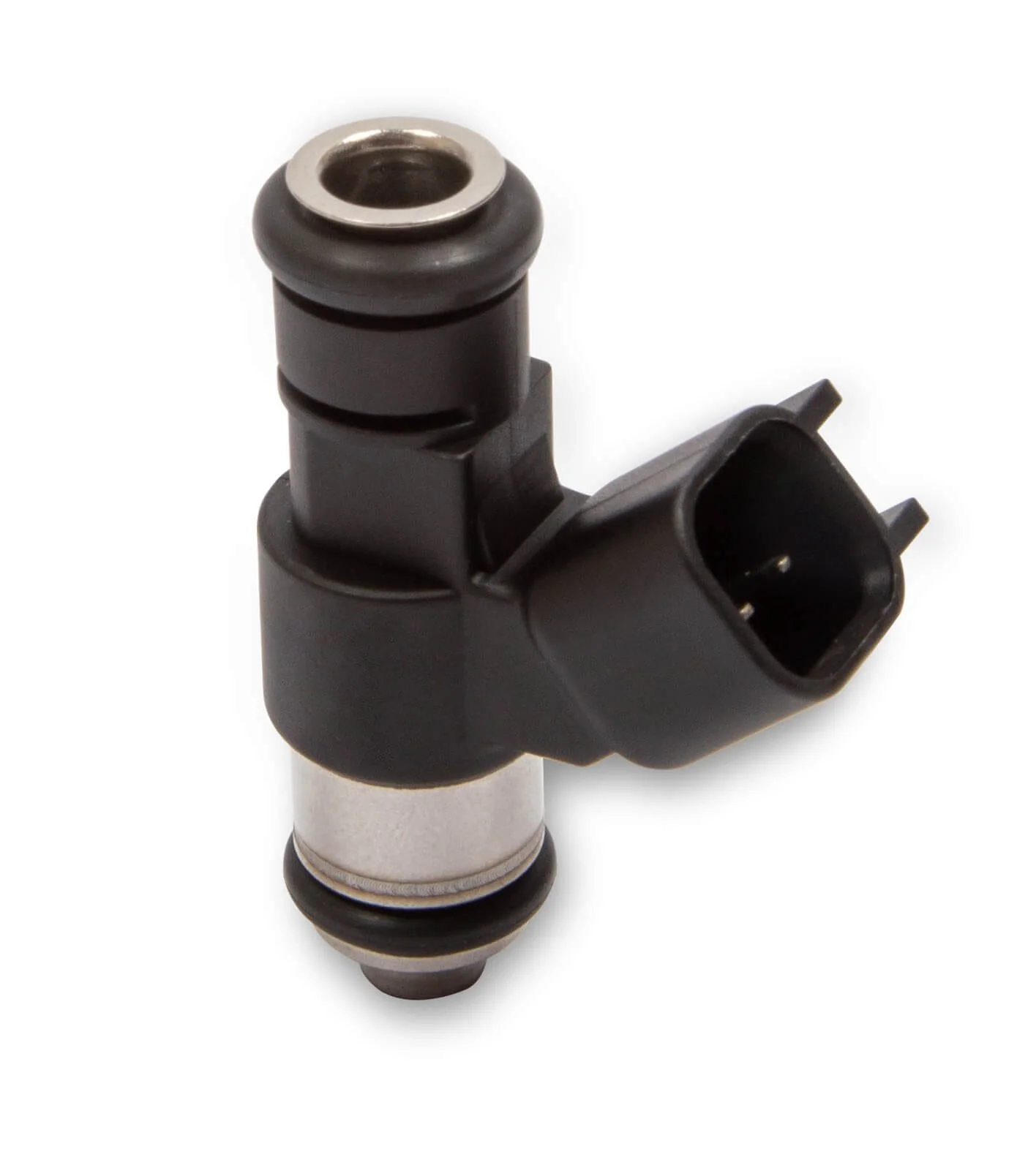

Terminator X High Impedance Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp o-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.
Features:
Details:
Links
Injector Data
PICO/EV6 - 120 lb/hr - High Impedance
Overview
Terminator X High Impedance Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp o-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.
Features:
- PICO/EV6 style performance injectors ???? sold individually or set of 8
- Dynamic Flow Matched within 1%
- High impedance for use with saturated drivers
- Rated injector flow from 42lb/hr to 120lb/hr for a wide array of applications, at 60psi base pressure, 220lb/hr injectors rated at 43psi base pressure
- 40mm o-ring to o-ring length
- Compatible with many OEM LS Intake Manifolds: LSA, LS3, LS7, L76, L92, L98, L99, LS9
- Injector Off Time provided in the Holley EFI software
Details:
- Body Diameter: 0.65
- Body Length: 1.85"
- Body Style: EV6
- Connector Series: EV6
- Fuel Type: E-85
- Fuel Type: Gasoline
- Impedance: High (12.2 Ohm)
- O-Ring to O-Ring: 1.421
- Rated Injector Flow: 120 lb/hr
Links
Injector Data
$736.95
