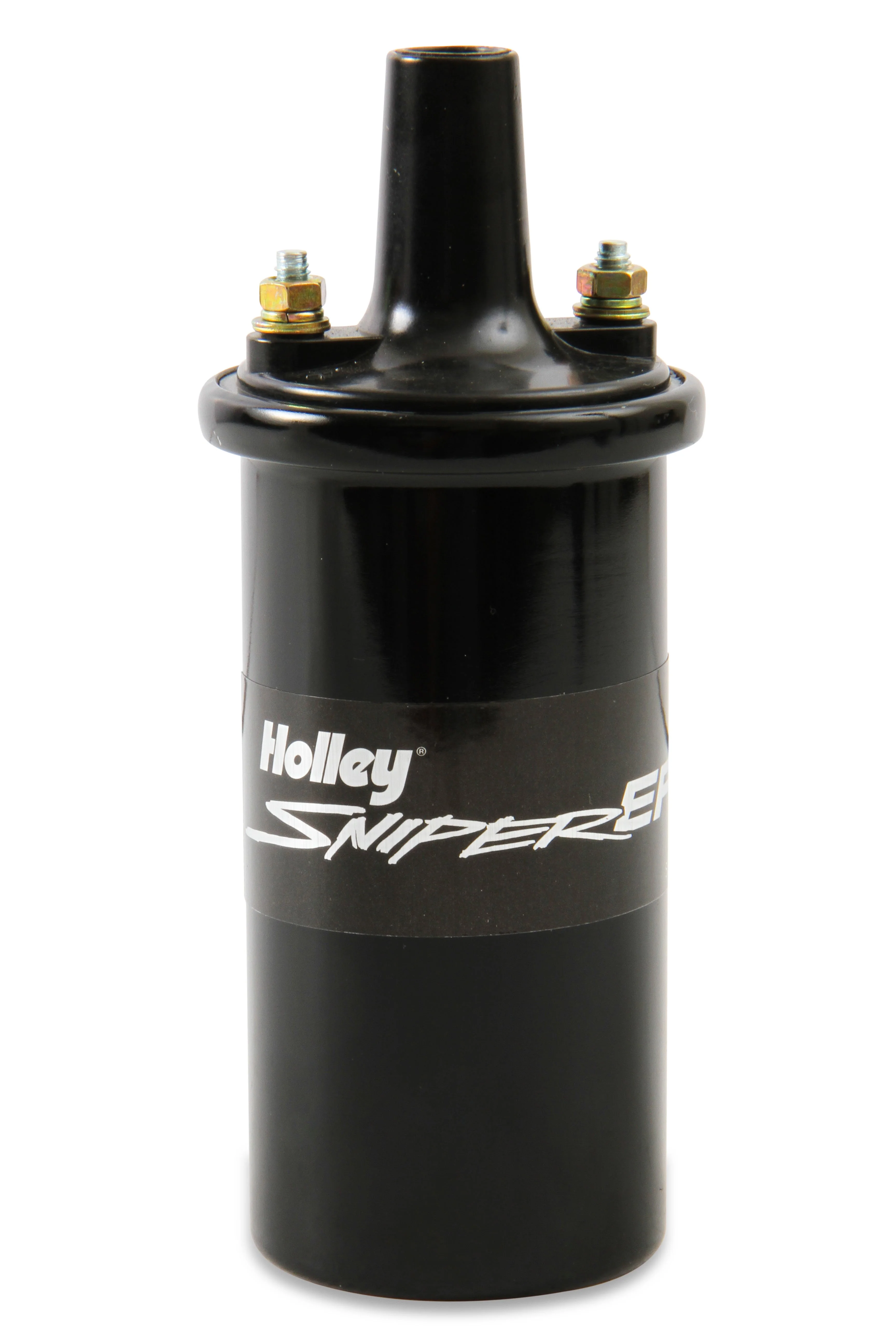

Sniper EFI Canister Ignition Coil
Sniper EFI Canister Ignition Coil
Ignition Coil
Overview
Do you need to upgrade your ignition system due to a recent Sniper EFI installation, but have no idea which option is best? Introducing HyperSpark Ignition, from Sniper EFI. The complete system consists of an ignition coil, CD ignition box, billet distributor with hall effect crank signal sensor, and complete wiring harness ready to plug and play with your Sniper EFI System. This high output ignition coil produces 135mJ of spark energy when used with the HyperSpark Ignition Box. The HyperSpark ignition coil comes self contained in it's own mounting bracket, with mounting hardware provided.
This ignition coil requires an ignition box. It is designed to be used with the HyperSpark CD Ignition box - Part Number 556-151. This product is NOT designed to work the Sniper EFI Ignition Coil Driver - Part number 556-150.
Features:
Details:
Ignition Coil
Overview
Do you need to upgrade your ignition system due to a recent Sniper EFI installation, but have no idea which option is best? Introducing HyperSpark Ignition, from Sniper EFI. The complete system consists of an ignition coil, CD ignition box, billet distributor with hall effect crank signal sensor, and complete wiring harness ready to plug and play with your Sniper EFI System. This high output ignition coil produces 135mJ of spark energy when used with the HyperSpark Ignition Box. The HyperSpark ignition coil comes self contained in it's own mounting bracket, with mounting hardware provided.
This ignition coil requires an ignition box. It is designed to be used with the HyperSpark CD Ignition box - Part Number 556-151. This product is NOT designed to work the Sniper EFI Ignition Coil Driver - Part number 556-150.
Features:
- Metal canister is epoxy filled to protect the internal coil windings from high vibration applications
- Improved output coil for electronic ignitions, and MSD Ignitions (ballast resistor required for points)
- 100:1 turns ratio and lower primary resistance produce high voltage output
Details:
- Color: Black
- Inductance: 8 mH
- Maximum Voltage: 45,000 Volts
- Peak Current: 140 mA
- Primary Resistance: .7 OHMs
- Secondary Resistance: 4.5K OHMs
- Spark duration: 350 uS
$80.13
Sniper EFI Canister Ignition Coil—
$80.13
More Images
Sniper EFI Canister Ignition Coil
Sniper EFI Canister Ignition Coil
Ignition Coil
Overview
Do you need to upgrade your ignition system due to a recent Sniper EFI installation, but have no idea which option is best? Introducing HyperSpark Ignition, from Sniper EFI. The complete system consists of an ignition coil, CD ignition box, billet distributor with hall effect crank signal sensor, and complete wiring harness ready to plug and play with your Sniper EFI System. This high output ignition coil produces 135mJ of spark energy when used with the HyperSpark Ignition Box. The HyperSpark ignition coil comes self contained in it's own mounting bracket, with mounting hardware provided.
This ignition coil requires an ignition box. It is designed to be used with the HyperSpark CD Ignition box - Part Number 556-151. This product is NOT designed to work the Sniper EFI Ignition Coil Driver - Part number 556-150.
Features:
Details:
Ignition Coil
Overview
Do you need to upgrade your ignition system due to a recent Sniper EFI installation, but have no idea which option is best? Introducing HyperSpark Ignition, from Sniper EFI. The complete system consists of an ignition coil, CD ignition box, billet distributor with hall effect crank signal sensor, and complete wiring harness ready to plug and play with your Sniper EFI System. This high output ignition coil produces 135mJ of spark energy when used with the HyperSpark Ignition Box. The HyperSpark ignition coil comes self contained in it's own mounting bracket, with mounting hardware provided.
This ignition coil requires an ignition box. It is designed to be used with the HyperSpark CD Ignition box - Part Number 556-151. This product is NOT designed to work the Sniper EFI Ignition Coil Driver - Part number 556-150.
Features:
- Metal canister is epoxy filled to protect the internal coil windings from high vibration applications
- Improved output coil for electronic ignitions, and MSD Ignitions (ballast resistor required for points)
- 100:1 turns ratio and lower primary resistance produce high voltage output
Details:
- Color: Black
- Inductance: 8 mH
- Maximum Voltage: 45,000 Volts
- Peak Current: 140 mA
- Primary Resistance: .7 OHMs
- Secondary Resistance: 4.5K OHMs
- Spark duration: 350 uS
