Holley Standalone Digital Dash Kit

Holley Standalone Digital Dash Kit

Wide range of tuning and data-monitoring options in a compact 3.5" LCD display

Overview

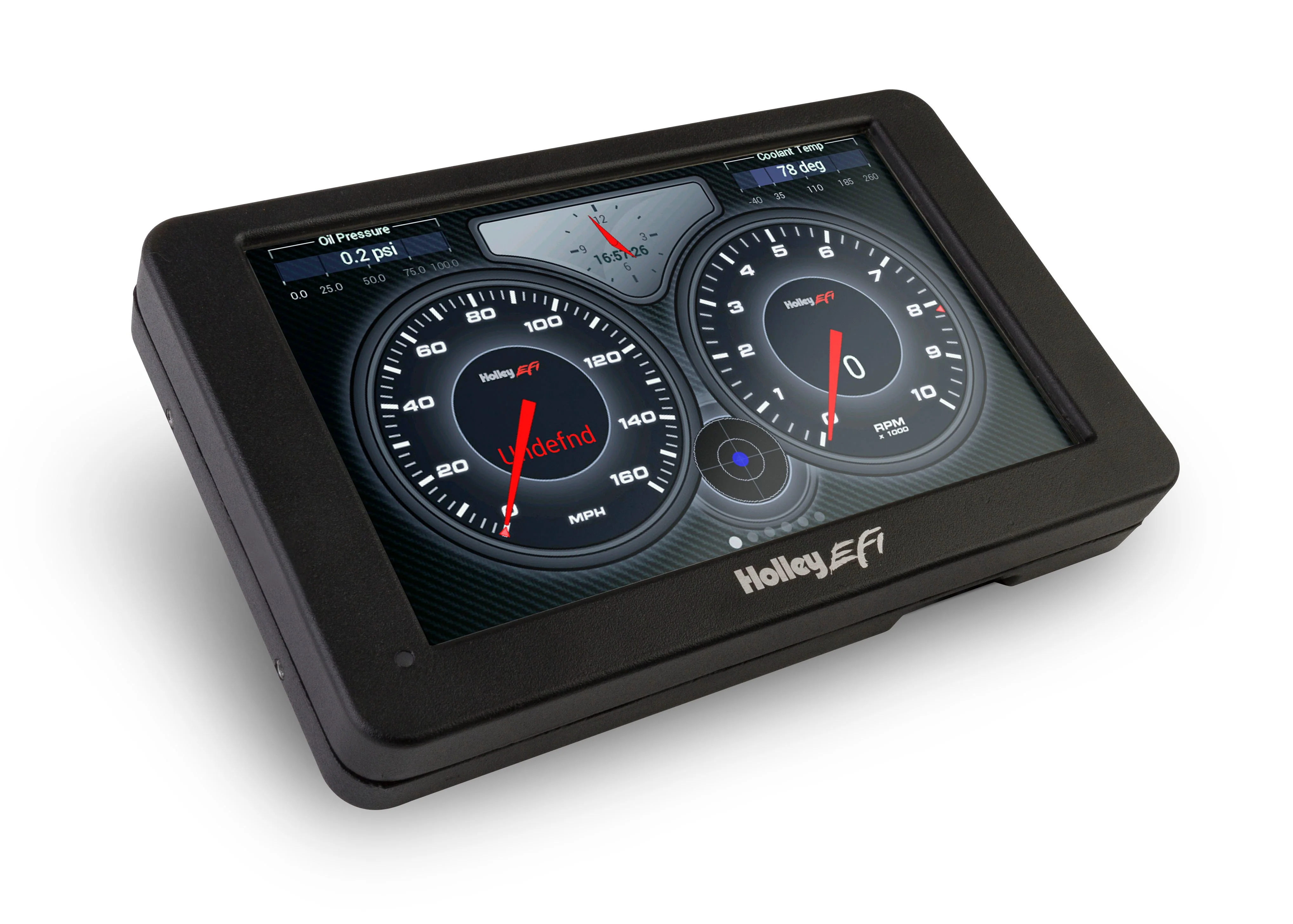

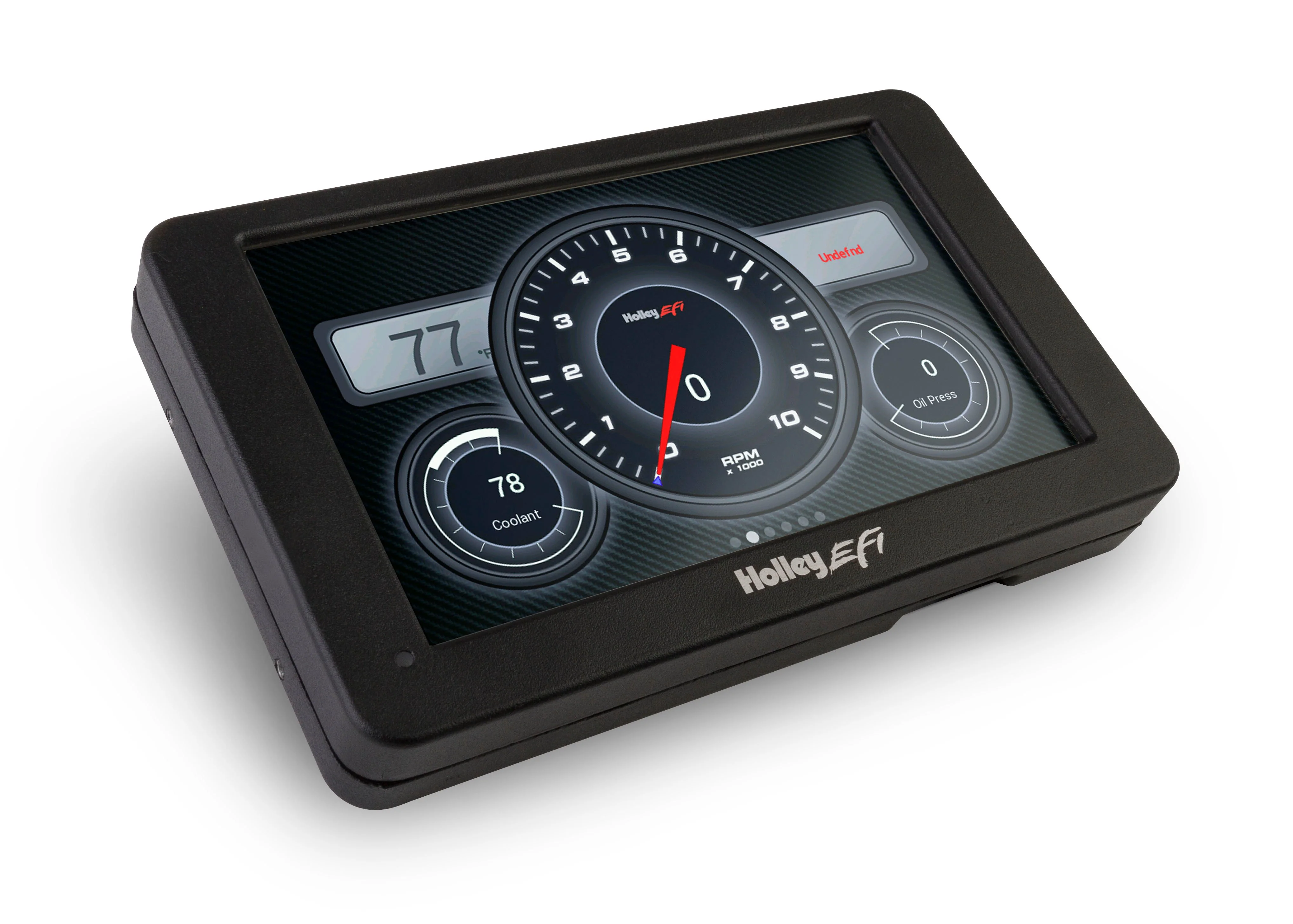

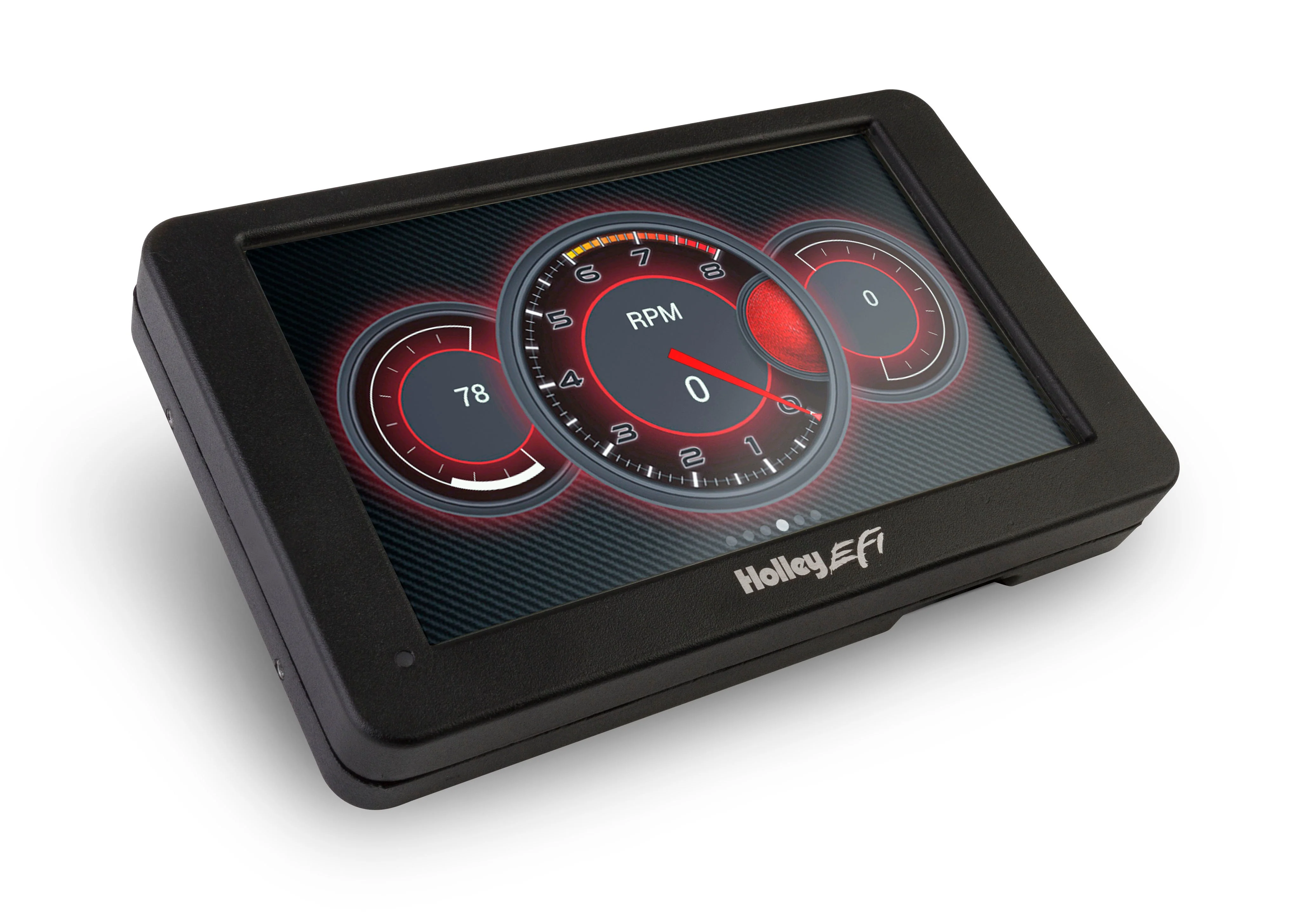

The touch screen LCD provides a dynamic range of tuning and data monitoring options in a compact 3.5" LCD display

Only compatible with Holley EFI systems.
Software and firmware updates can be downloaded here for free.

Features:

• Compact, customizable dash for use in a variety of applications
• 7??? low glare, high brightness, high contrast, full color touch screen for easy viewing even in full sun
• 800x480 resolution with auto brightness and dimming
• Operating voltage min 8V - 20V
• Includes USB GPS for Speedometer display with a magnetic base for a quick and clean install
• Weather resistant aluminum housing with flexible mounting options
• Completely customizable layouts, with multiple default configurations to get you running in no time!
• Multiple gauge indicator types with limitless customization options
• Quickly toggle between multiple active screens (tune, warm-up, race, drive, etc.)
• Virtual Switch Panel (replaces the need for physical switches) *2 switched ground outputs to be added to trigger an external relay*
• Retains the same gauge customization flexibility as the EFI dash, but now allows use with any vehicle
• Powerful data log software provides in-depth analysis (10 samples/sec) of all inputs and outputs, including the integrated 3 axis accelerometer and USB GPS-no need for separate data logging boxes
• A variety of additional sensors are available for use with the dash, including fuel pressure, nitrous pressure, boost, with more to come!
• Pair with a Holley EFI LED Light Bar (PN 553-107) for a truly customizable solution!
• User definable warnings for any input
• Configurable progressive shift lights and light bar
• Expandable internal storage on micro SD card
• Free Software and Firmware upgrades, providing a future proof display solution

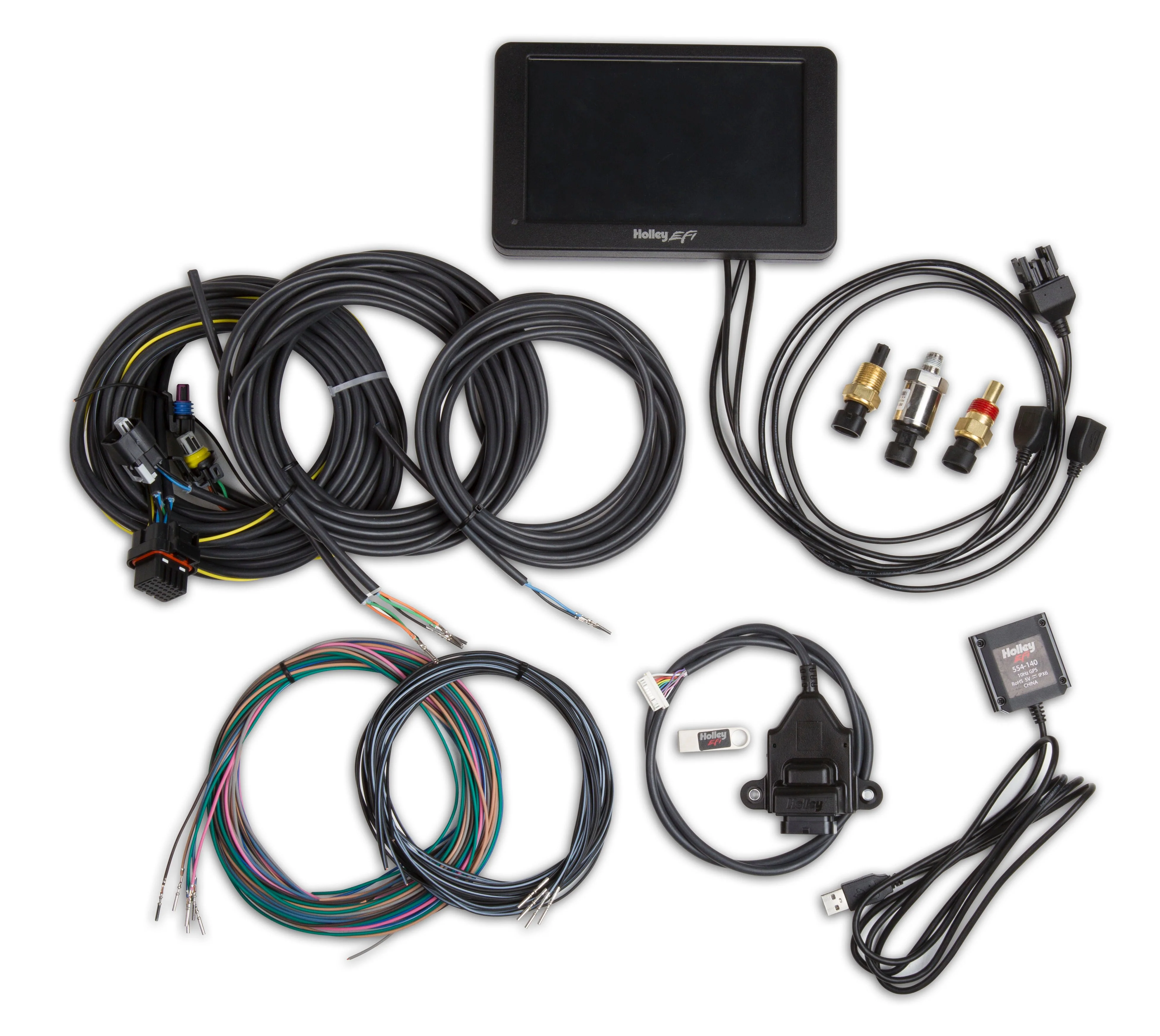

• Included parts: Standalone digital dash kit with I/O adapter, USB memory stick, terminated vehicle harness, oil pressure sensor, CTS sensor, MAT sensor, USB GPS

Details:

• Depth: 1"
• Screen Size: 7" Diagonal
• Screen Type: Resistive touch screen
